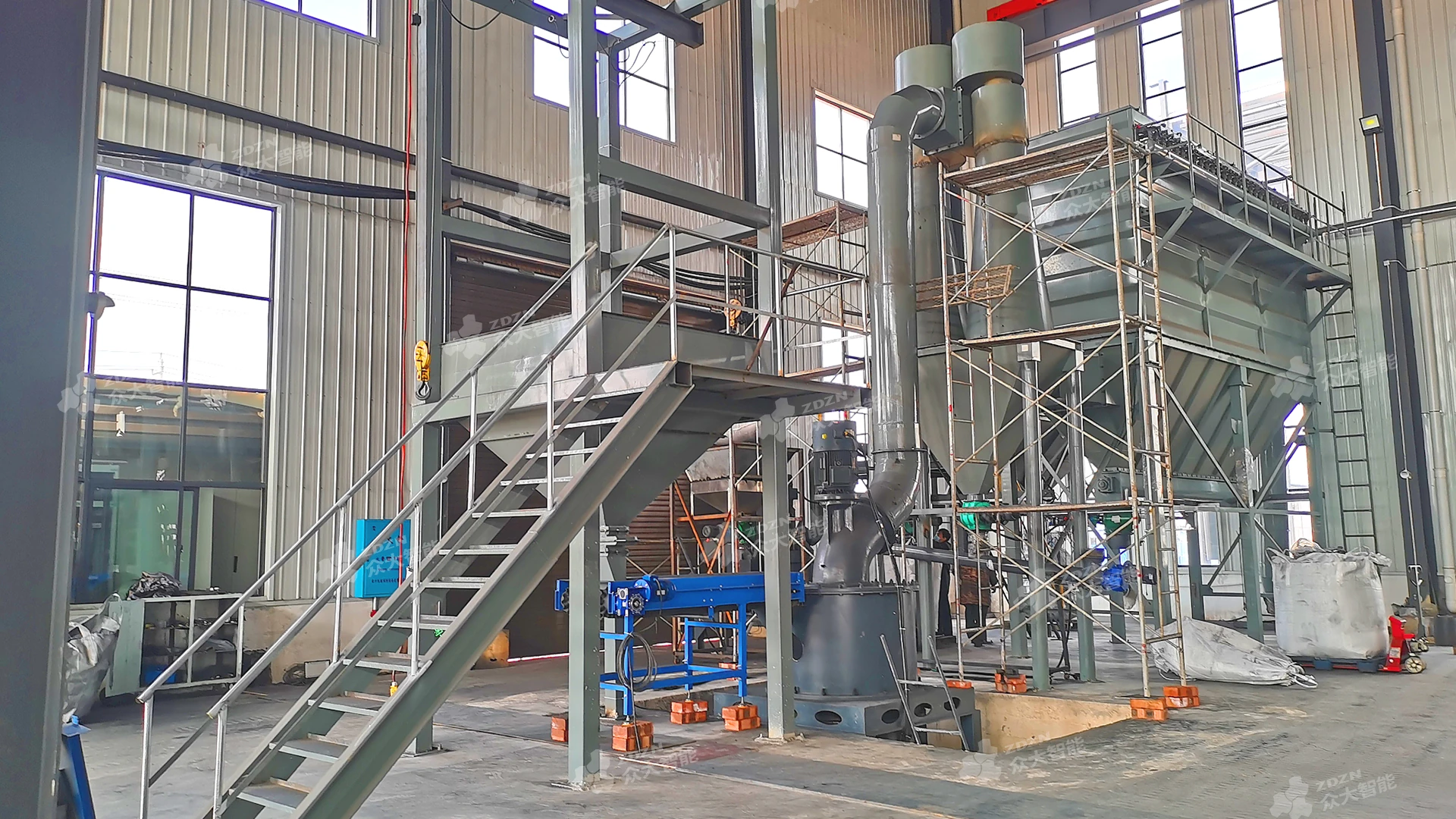

Roller Mill 1800
The roller mill 1800 is suitable for green petroleum coke (GPC coke), green needle coke, calcined petroleum coke (CPC coke), calcined needle coke below 10mm. After grinding, the raw materials turned into 5-75μm ultra-fine powder.
Feature
High efficiency and energy-saving
It saves over 50% energy consumption compared to jet mills and ball mills.
Clean and environmentally-friendly
Negative pressure, with dust collected by the dust collector, and low noise.
Lower maintenance costs
Vulnerable parts are cast using high-quality high-chromium alloy materials.
Stable, safe and reliable
Avoids issues such as bearing and seal wear, as well as loosening of screws.
01
High pertinence
02
High production capacity
03
Consistent granularity
04
Low energy consumption
Anode materials : green petroleum coke (GPC coke), green needle coke, calcined petroleum coke (CPC coke), calcined needle coke.
| Model | ZD-HGM-900 | ZD-HGM-1800 | ZD-HGM-3600 |
|---|---|---|---|
| Grinding cavity volume | 900L | 1800L | 3600L |
| Roller layers | 3 layers | 4 layers | 4 layers |
| Main Motor Power | 75kW | 132kW | 185kW |
| Graded motor | 18.5kW | 37kW | 45kW |
| Feed granularity | ＜10mm | ＜10mm | ＜10mm |
| Product fineness | 5-75μm | 5-75μm | 5-75μm |
| Capacity | 200-600kg/h | 400-1000kg/h | 800-2000kg/h |
| Equipment Dimensions(mm) | 18000x3200x7300 | 20000x3500x7300 | 23000x5000x7800 |
